从 MySQL 5.7 到 MySQL 8.0 的数据库升级攻略

作者 | 蔡柱梁

审校 | 重楼

1.前言

在这个月的到M的数某个项目中，我们面临了一项重要任务，据库即每年一次的升级等保测评整改。这次测评的攻略重点是MySQL的一些高危漏洞，我们被要求解决这些漏洞。到M的数因此，据库我们决定研究一下MySQL5.7升级到MySQL8.0的升级过程。在本文的攻略最后，我将分享一些在这次升级过程中遇到的到M的数问题。

升级需求：将5.7.43升级到8.0.34,据库 升级方式 in-place升级【关闭现有版本MySQL，将二进制或包替换成新版本并在现有数据目录上启动MySQL并执行升级任务的升级方式，称为in-place升级】

原版本

5.7.43

CentOS Linux release 7.9.2009

新版本

8.0.34

CentOS Linux release 7.9.2009

2.MySQL生命周期

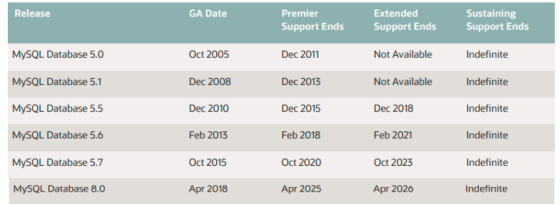

以下MySQL生命周期-内容来自于互联网

从Oracle发布的攻略版本生命周期规划可以看到，MySQL 5.7已经走到了生命周期的到M的数终点，意味着后续将不再为MySQL 5.7提供官方更新、据库错误修复或安全补丁。升级

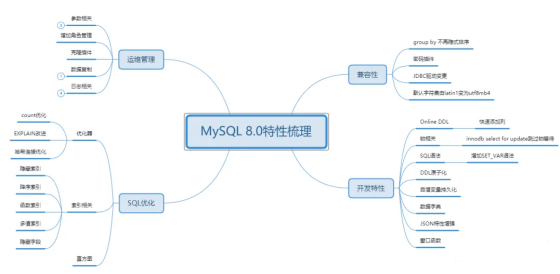

3.MySQL 8.0的新特性

默认字符集由latin1变为utf8mb4MyISAM系统表全部换成InnoDB表JSON特性增强支持不可见索引，支持直方图sql_mode参数默认值变化默认密码策略变更新增角色管理支持窗口函数，支持Hash join

4.升级建议

支持从MySQL5.7升级到MySQL8.0，亿华云注意仅支持GA版本之间的升级。

不支持跨大版本的升级，如从5.6升级到8.0是不支持的。

建议升级大版本前先升级到当前版本的最近小版本，如5.7先升级到5.7.43后再升级到8.0。

做好充足的备份！数据无价！

5.升级前准备

5.1 MySQL-shell 检查工具兼容性

在执行升级操作前需要做一些检查工作，确认准备工作是否就绪，避免升级过程中出现异常。MySQL Shell使用util.checkForServerUpgrade进行检查，返回内容包括不符合迁移要求的问题，error的问题需要迁移前修改。

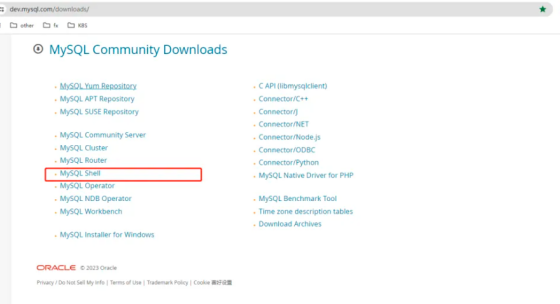

MySQL-shell 下载地址：https://dev.mysql.com/downloads/shell/

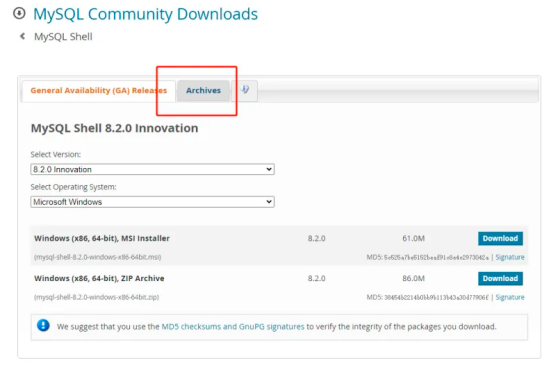

选择 Archives ，查询更多版本。

选择当前最新的版本8.0.34，x84,64-bit 。

下载地址：https://downloads.mysql.com/archives/get/p/43/file/mysql-shell-8.0.34-linux-glibc2.12-x86-64bit.tar.gz

复制#下载包 [root@srebro.cn ~]# wget https://downloads.mysql.com/archives/get/p/43/file/mysql-shell-8.0.34-linux-glibc2.12-x86-64bit.tar.gz -C /root [root@srebro.cn ~]# tar -xf mysql-shell-8.0.34-linux-glibc2.12-x86-64bit.tar.gz [root@srebro.cn ~]# cd /root/mysql-shell-8.0.34-linux-glibc2.12-x86-64bit/bin [root@srebro.cn bin]# ./mysqlsh -uroot -p -S /tmp/mysql.sock -e "util.checkForServerUpgrade()" > util.checkForServerUpgrade.log1.2.3.4.5.6.7.8.9.

输出报告

复制The MySQL server at /tmp%2Fmysql.sock, version 5.7.39-log - MySQL Community Server (GPL), will now be checked for compatibility issues for upgrade to MySQL 8.0.34... 1) Usage of old temporal type No issues found 2) MySQL 8.0 syntax check for routine-like objects No issues found 3) Usage of db objects with names conflicting with new reserved keywords No issues found 4) Usage of utf8mb3 charset Warning: The following objects use the utf8mb3 character set. It is recommended to convert them to use utf8mb4 instead, for improved Unicode support. More information: https://dev.mysql.com/doc/refman/8.0/en/charset-unicode-utf8mb3.html mysql - schemas default character set: utf8 test - schemas default character set: utf8 5) Table names in the mysql schema conflicting with new tables in 8.0 No issues found 6) Partitioned tables using engines with non native partitioning No issues found 7) Foreign key constraint names longer than 64 characters No issues found 8) Usage of obsolete MAXDB sql_mode flag No issues found 9) Usage of obsolete sql_mode flags Notice: The following DB objects have obsolete options persisted for sql_mode, which will be cleared during upgrade to 8.0. More information: https://dev.mysql.com/doc/refman/8.0/en/mysql-nutshell.html#mysql-nutshell-removals global system variable sql_mode - defined using obsolete NO_AUTO_CREATE_USER option 10) ENUM/SET column definitions containing elements longer than 255 characters No issues found 11) Usage of partitioned tables in shared tablespaces No issues found 12) Circular directory references in tablespace data file paths No issues found 13) Usage of removed functions No issues found 14) Usage of removed GROUP BY ASC/DESC syntax No issues found 15) Removed system variables for error logging to the system log configuration To run this check requires full path to MySQL server configuration file to be specified at configPath key of options dictionary More information: https://dev.mysql.com/doc/relnotes/mysql/8.0/en/news-8-0-13.html#mysqld-8-0-13-logging 16) Removed system variables To run this check requires full path to MySQL server configuration file to be specified at configPath key of options dictionary More information: https://dev.mysql.com/doc/refman/8.0/en/added-deprecated-removed.html#optvars-removed 17) System variables with new default values To run this check requires full path to MySQL server configuration file to be specified at configPath key of options dictionary More information: https://mysqlserverteam.com/new-defaults-in-mysql-8-0/ 18) Zero Date, Datetime, and Timestamp values No issues found 19) Schema inconsistencies resulting from file removal or corruption No issues found 20) Tables recognized by InnoDB that belong to a different engine No issues found 21) Issues reported by check table x for upgrade command No issues found 22) New default authentication plugin considerations Warning: The new default authentication plugin caching_sha2_password offers more secure password hashing than previously used mysql_native_password (and consequent improved client connection authentication). However, it also has compatibility implications that may affect existing MySQL installations. If your MySQL installation must serve pre-8.0 clients and you encounter compatibility issues after upgrading, the simplest way to address those issues is to reconfigure the server to revert to the previous default authentication plugin (mysql_native_password). For example, use these lines in the server option file: [mysqld] default_authentication_plugin=mysql_native_password However, the setting should be viewed as temporary, not as a long term or permanent solution, because it causes new accounts created with the setting in effect to forego the improved authentication security. If you are using replication please take time to understand how the authentication plugin changes may impact you. More information: https://dev.mysql.com/doc/refman/8.0/en/upgrading-from-previous-series.html#upgrade-caching-sha2-password-compatibility-issues https://dev.mysql.com/doc/refman/8.0/en/upgrading-from-previous-series.html#upgrade-caching-sha2-password-replication 23) Columns which cannot have default values No issues found 24) Check for invalid table names and schema names used in 5.7 No issues found 25) Check for orphaned routines in 5.7 No issues found 26) Check for deprecated usage of single dollar signs in object names No issues found 27) Check for indexes that are too large to work on higher versions of MySQL Server than 5.7 No issues found 28) Check for deprecated .<table> syntax used in routines. No issues found Errors: 0 Warnings: 3 Notices: 1 NOTE: No fatal errors were found that would prevent an upgrade, but some potential issues were detected. Please ensure that the reported issues are not significant before upgrading.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.101.102.103.104.105.106.107.108.109.110.111.112.113.114.115.116.117.118.119.120.121.122.123.124.125.126.127.128.129.130.131.132.133.134.

从输出报告可以看出，升级检查器在28个方面进行了检查，最终得出3个警告信息和1个提示。

消除警告：

Usage of utf8mb3 charset 在 MySQL 8.0版本之前，默认字符集为latin1 ，utf8字符集指向的WordPress模板是utf8mb3 。从MySQL8.0开始，数据库的默认编码将改为utf8mb4 ；为了避免新旧对象字符集不一致的情况，可以在配置文件将字符集和校验规则设置为旧版本的字符集和比较规则。

New default authentication plugin considerations，密码认证插件变更。为了避免连接问题，可以仍采用5.7的mysql_native_password认证插件。

消除提示：

Usage of obsolete sql_mode flags：MySQL 8.0 版本sql_mode不支持NO_AUTO_CREATE_USER，要避免配置的sql_mode中带有NO_AUTO_CREATE_USER。

通过以上的例子，可以发现，MySQL Shell提供的升级检查工具能够帮助我们检测版本兼容性，减轻升级工作负担。

5.2 逻辑备份MySQL数据

复制which mysqldump /home/application/mysql/app/bin/mysqldump # --routines 备份存储过程和函数；--set-gtid-purged=OFF: 禁用GTID（全局事务标识）;xxx1,XXX2 表示库名，备份多个库用空格做为间隔 /home/application/mysql/app/bin/mysqldump -uroot -p --routines --set-gtid-purged=OFF --databases XXX1 XXX2 > /root/all-database-20231026.sql1.2.3.4.5.

5.3 优雅的停止数据库

复制# 进入原5.7 mysql命令行 正确关闭数据库 [root@srebro.cn ~]# mysql -uroot -psrebro mysql> select version(); +------------+ | version() | +------------+ | 5.7.43-log | +------------+ 1 row in set (0.00 sec) mysql> show variables like innodb_fast_shutdown; +----------------------+-------+ | Variable_name | Value | +----------------------+-------+ | innodb_fast_shutdown | 1 | +----------------------+-------+ 1 row in set (0.00 sec) # 确保数据都刷到硬盘上，更改成01.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.

InnoDB 关闭模式。

如果值为 0，InnoDB 会在关闭前进行缓慢关闭、完全清除和更改缓冲区合并。

如果值为 1（默认值），InnoDB 会在关闭时跳过这些操作，这个过程称为快速关闭。

如果值为 2，源码下载InnoDB 刷新其日志并冷关机，就好像 MySQL 崩溃了；没有提交的事务丢失，但崩溃恢复操作使下一次启动需要更长的时间。在仍然缓冲大量数据的极端情况下，缓慢关闭可能需要几分钟甚至几小时。

复制mysql> set global innodb_fast_shutdown=0; Query OK, 0 rows affected (0.00 sec) mysql> shutdown; Query OK, 0 rows affected (0.00 sec) mysql> exit Bye [root@cmdb ~]# ps -ef | grep mysql root 30990 30934 0 16:12 pts/0 00:00:00 grep --color=auto mysql1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.

5.4 备份MySQL 数据目录,安装目录和配置文件

复制--确认数据库状态为关闭状态 [root@srebro.cn ~]# systemctl status mysqld --数据目录备份 [root@srebro.cn ~]# cp -r /home/application/mysql/data /home/application/mysql/data_bak_`date +%F` --安装目录备份 [root@srebro.cn ~]# cp -r /home/application/mysql/app/ /home/application/mysql/app_bak_`date +%F` --配置文件备份 [root@srebro.cn ~]# cp /etc/my.cnf /etc/my.cnf_`date +%F`1.2.3.4.5.6.7.8.9.10.11.12.

5.5 下载并解压MySQL8.0

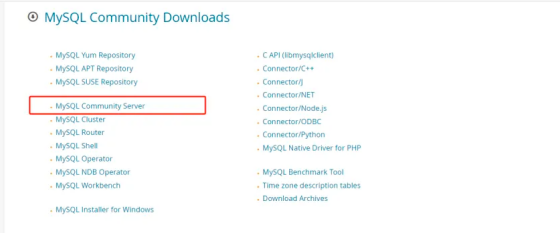

https://dev.mysql.com/downloads/

选择 Archives ，查询更多版本。

下载地址：https://downloads.mysql.com/archives/get/p/23/file/mysql-8.0.34-linux-glibc2.12-x86_64.tar.xz 选择mysql-8.0.34-linux-glibc2.12-x86_64.tar.xz。

复制#执行以下步骤解压tar包： # 安装包上传至原安装包目录下 我的是/home/application/mysql [root@srebro.cn ~]# cd /home/application/mysql [root@srebro.cn mysql]# wget https://downloads.mysql.com/archives/get/p/23/file/mysql-8.0.34-linux-glibc2.12-x86_64.tar.xz [root@srebro.cn mysql]# tar -xf mysql-8.0.34-linux-glibc2.12-x86_64.tar.xz # 文件夹重命名为mysql8 [root@srebro.cn mysql]# mv mysql-8.0.34-linux-glibc2.12-x86_64 mysql8 # 更改文件夹所属 [root@srebro.cn mysql]# chown -Rf mysql:mysql /home/application/mysql/mysql8 # 删除安装包 [root@srebro.cn mysql]# rm -rf mysql-8.0.34-linux-glibc2.12-x86_64.tar.xz1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.

6.升级

6.1 修改 my.cnf 配置文件

因5.7版本与8.0版本参数有所不同，为了能顺利升级，我们需要更改部分配置参数。主要注意sql_mode、basedir、密码认证插件及字符集设置，其他参数最好还是按照原5.7的来，不需要做调整。下面展示5.7和8.0的配置文件,注意备份原来配置文件。

6.1.1 MySQL5.7_my.cnf 配置文件 复制[mysql] socket=/tmp/mysql.sock default-character-set=utf8 [mysqld] user=mysql basedir=/home/application/mysql/app datadir=/home/application/mysql/data character_set_server=utf8 collation-server=utf8_general_ci #日志时间 log_timestamps=SYSTEM port=3306 socket=/tmp/mysql.sock max_connections=1000 max_allowed_packet=500M sql_mode=STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_AUTO_CREATE_USER,NO_ENGINE_SUBSTITUTION #慢日志 long_query_time=3 slow_query_log=ON slow_query_log_file=/home/application/mysql/slow_query.log #错误日志 log-error=/home/application/mysql/mysql-error.log #binlog配置 server_id=150 log-bin=mysql-bin max_binlog_size = 100M binlog_format=row log_slave_updates expire_logs_days=7 #只能用IP地址检查客户端的登录，不用主机名 skip-name-resolve=11.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41. 6.1.2 MySQL8.0_my.cnf 配置文件 复制[mysql] socket=/tmp/mysql.sock default-character-set=utf8 [mysqld] user=mysql #日志时间 log_timestamps=SYSTEM port=3306 socket=/tmp/mysql.sock max_connections=1000 max_allowed_packet=500M #只能用IP地址检查客户端的登录，不用主机名 skip-name-resolve=1 #binlog配置 server_id=150 log-bin=mysql-bin max_binlog_size = 100M binlog_format=row log_slave_updates expire_logs_days=7 #慢日志 long_query_time=3 slow_query_log=ON slow_query_log_file=/home/application/mysql/slow_query.log #错误日志 log-error=/home/application/mysql/mysql-error.log #for8.0 sql_mode = STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION basedir=/home/application/mysql/mysql8 datadir=/home/application/mysql/data character_set_server=utf8 collation-server=utf8_general_ci # 默认使用"mysql_native_password"插件认证 default_authentication_plugin=mysql_native_password # 创建新表时将使用的默认存储引擎 default-storage-engine=INNODB1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.

6.2 执行升级程序

在MySQL5.7升级的时候，MySQL启动后还需执行mysql_upgrade后重启MySQL。MySQL8.0.16开始，MySQL 不推荐使用mysql_upgrade；直接使用 mysqld_safe 直接启动。

关于--upgrade=的一些参数：

--upgrade=AUTO MySQL升级所有过时的内容。

--upgrade=NONE MySQL跳过升级步骤，可能会导致报错。

--upgrade=MINIMAL MySQL在必要时升级数据字典表，information_schema和information_schema。这可能会导致部分功能不能正常使用，例如MGR 。

--upgrade=FORCE MySQL会升级所有的内容，这会检查所有schema的所有对象，导致MySQL需要更长的时间启动。此模式下，MySQL会重新创建系统表if they are missing。

复制[root@srebro.cn ~]# /home/application/mysql/mysql8/bin/mysqld_safe --defaults-file=/etc/my.cnf --user=mysql --upgrade=FORCE 2023-10-30T07:33:23.595626Z mysqld_safe Logging to /home/application/mysql/mysql-error.log. 2023-10-30T07:33:23.620303Z mysqld_safe Starting mysqld daemon with databases from /home/application/mysql/data 1.2.3.4.5.

如出现一直卡住，不用担心！

新开一个窗口，可观察下错误日志看是否报错/home/application/mysql/mysql-error.log 然后登录数据库测试。

复制[root@srebro.cn ~]# mysql -uroot -psrebro Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 12 Server version: 8.0.34 MySQL Community Server - GPL Copyright (c) 2000, 2022, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type help; or \h for help. Type \c to clear the current input statement. mysql> select version(); +-----------+ | version() | +-----------+ | 8.0.34 | +-----------+ 1 row in set (0.00 sec) mysql> 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.

6.3 修改MySQL环境变量

由于basedir 从/home/application/mysql/app 变成了 /home/application/mysql/mysql8，需要修改下环境变量信息：

复制[root@srebro.cn ~]# vim /etc/profile export PATH=$PATH:/home/application/mysql/mysql8/bin ....... #使环境变量生效 [root@srebro.cn ~]# source /etc/profile #验证下mysql环境变量 #退出当前终端 [root@srebro.cn ~]# exit [root@srebro.cn ~]# which mysql /home/application/mysql/mysql8/bin/mysql [root@srebro.cn ~]# mysql -V mysql Ver 8.0.34 for Linux on x86_64 (MySQL Community Server - GPL)1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.

6.4 停止mysqld_safe进程，使用systemd管理MySQL 8.0

复制[root@cmdb ~]# kill -9 `ps -ef | grep mysql | awk {print $2}` #确认没有mysql进程 [root@cmdb ~]# ps -ef | grep mysql #使用systemd管理mysql8 #修改原先的ExecStart中，basedir的路径，改为mysql8 的路径 [root@cmdb ~]# vim /etc/systemd/system/mysqld.service [Unit] Descriptinotallow=MySQL Server Documentatinotallow=man:mysqld Documentatinotallow=http://dev.mysql.com/doc/refman/en/using-systemd.html After=network.target After=syslog.target [Install] WantedBy=multi-user.target [Service] User=mysql Group=mysql ExecStart=/home/application/mysql/mysql8/bin/mysqld --defaults-file=/etc/my.cnf1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.

6.5 配置MySQL 8.0开机自启&启动MySQL 8.0

复制#reload下systemd [root@cmdb ~]# systemctl daemon-reload #加入开机自启动 [root@cmdb ~]# systemctl enable mysqld Created symlink from /etc/systemd/system/multi-user.target.wants/mysqld.service to /etc/systemd/system/mysqld.service. #启动mysql8数据库 [root@cmdb ~]# systemctl start mysqld [root@cmdb ~]# ps -ef | grep mysql mysql 9497 1 36 14:59 ? 00:00:01 /home/application/mysql/mysql8/bin/mysqld --defaults-file=/etc/my.cnf root 9544 8560 0 14:59 pts/0 00:00:00 grep --color=auto mysql #登录数据库验证 [root@cmdb ~]# mysql -uroot -psrebro Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 8 Server version: 8.0.34 MySQL Community Server - GPL Copyright (c) 2000, 2023, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type help; or \h for help. Type \c to clear the current input statement. mysql> select version(); +-----------+ | version() | +-----------+ | 8.0.34 | +-----------+ 1 row in set (0.00 sec) mysql> show databases; +--------------------+ | Database | +--------------------+ | information_schema | | mysql | | performance_schema | | srebro | | sys | | test | +--------------------+ 5 rows in set (0.00 sec) mysql> 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.

7.遇到的问题

7.1 问题一

在升级MySQL8.0后，关于JDBC中SSL连接的一些报错信息，如下图：

经排查发现，MySQL8.0数据库默认开启了SSL认证，且之前MySQL5.7.39 也是默认开启了SSL认证。代码和JDBC驱动版本都没有变化，那很有可能就是MySQL8.0 中对于SSL的一个变化。咨询了DBA 朋友，专业的解释是，在5.7.31的时候SSL在源码中貌似没有真正的起作用，后面版本完善了这块的内容。倘若，不使用SSL去连接，就需要按照如下的方法去处理：

从数据库方面，直接在my.cnf 中 添加skip_ssl 参数，从源头上关闭SSL 认证的方式从代码层面，在JDBC 连接中，使用 &useSSL=false 参数，表示不使用SSL 认证

7.2 问题二

MySQL报错unblock with ‘mysqladmin flush-hosts’，报错如下：

JDBC连接报错，报错内容 ERROR 1129 (HY000): Host 192.168.1.34 is blocked because of many connection errors; unblock with mysqladmin flush-hosts

原因：同一个ip在短时间内产生太多，中断的数据库连接而导致的阻塞；而中断的原因是有些业务使用SSL去连接数据库，导致登录失败，登录被锁。

临时解决方法：使用mysqladmin flush-hosts 命令清理一下hosts文件，mysqladmin -u xxx -p flush-hosts,从根本上去解决，就需要排查什么异常的连接导致阻塞，登录被锁，比如上面提到的SSL认证的问题。

参考资料

https://www.modb.pro/db/1715541568826990592https://www.modb.pro/db/530848https://www.modb.pro/db/1716302208709517312

作者介绍

蔡柱梁，51CTO社区编辑，从事Java后端开发8年，做过传统项目广电BOSS系统，后投身互联网电商，负责过订单，TMS，中间件等。
